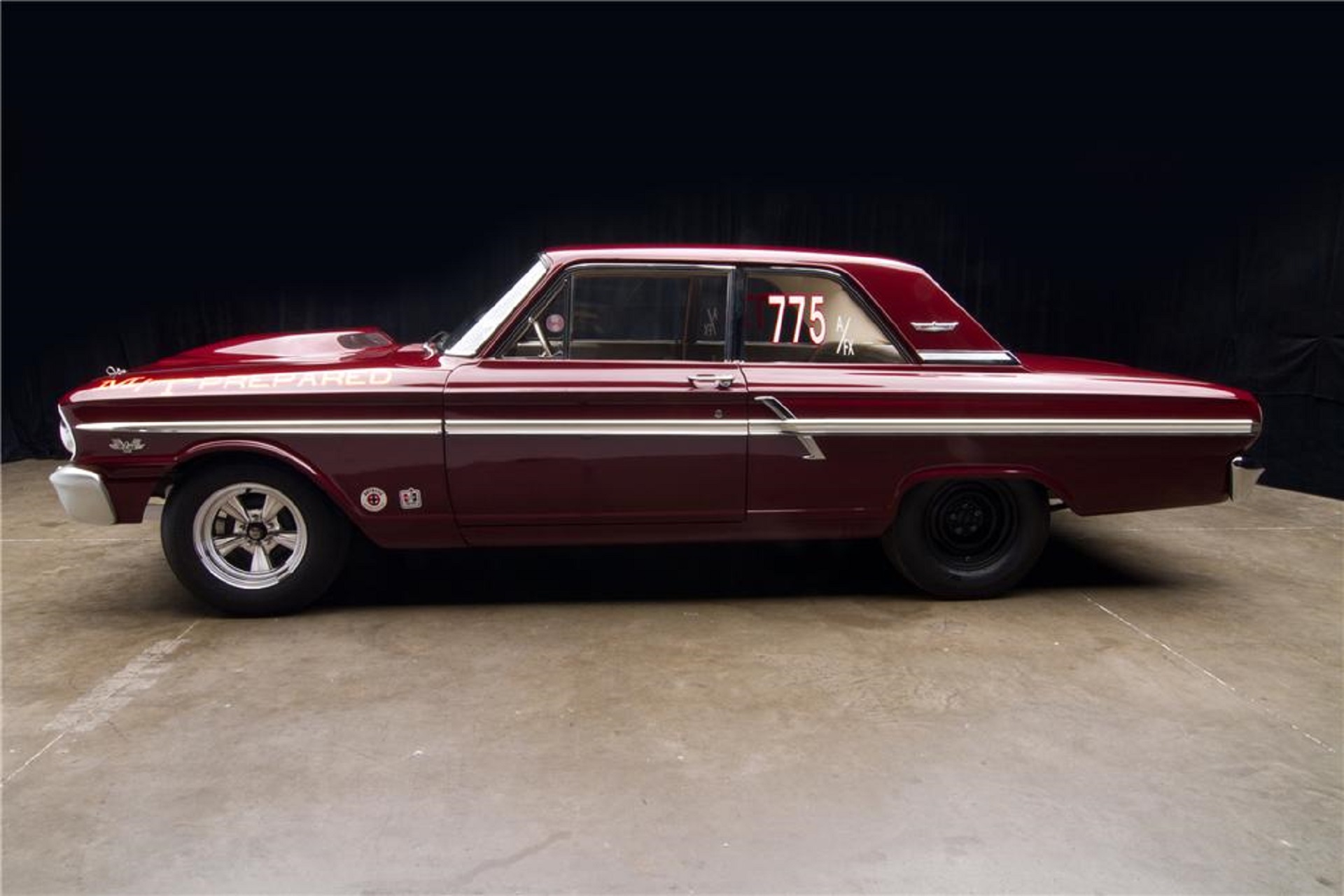

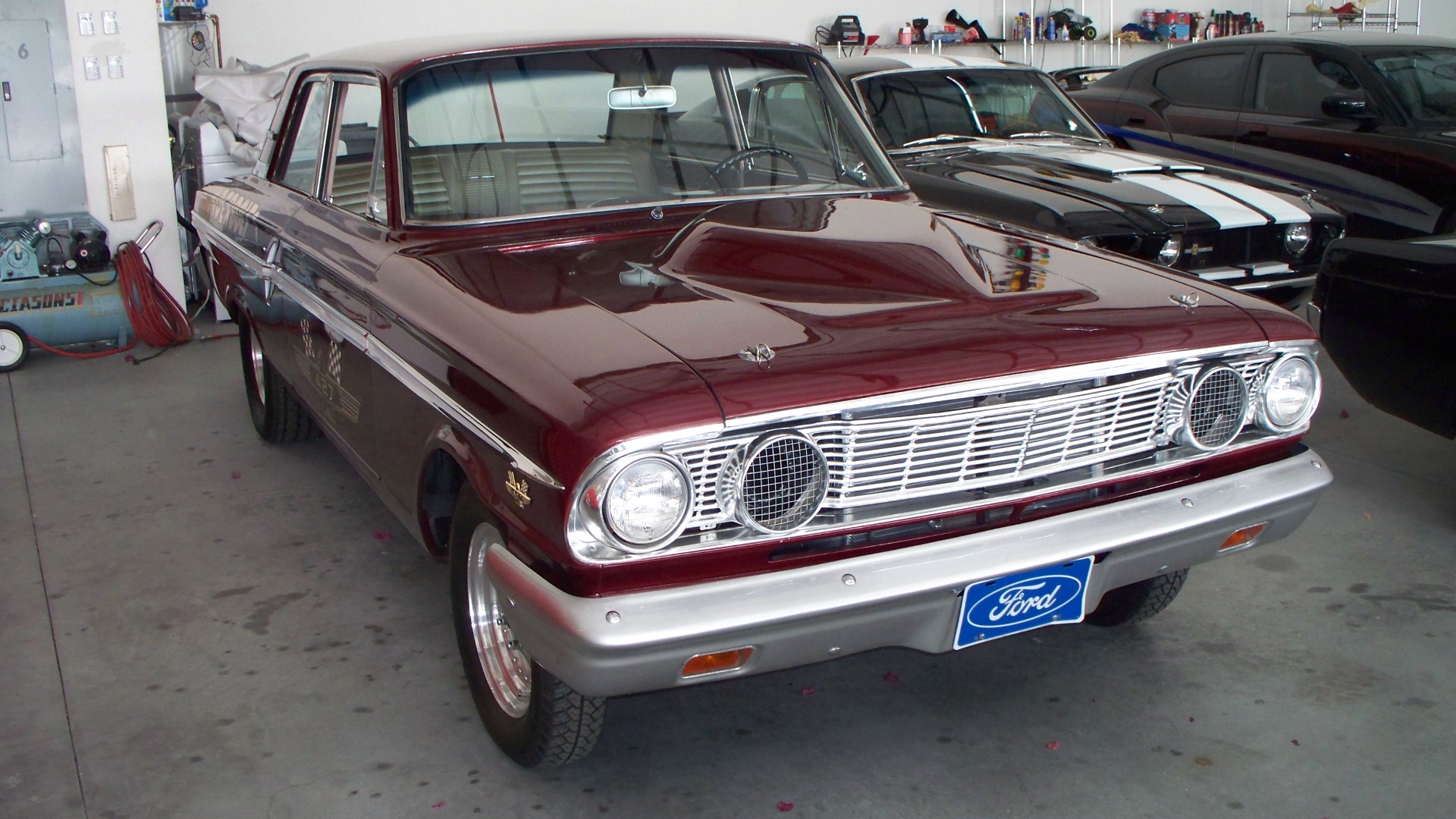

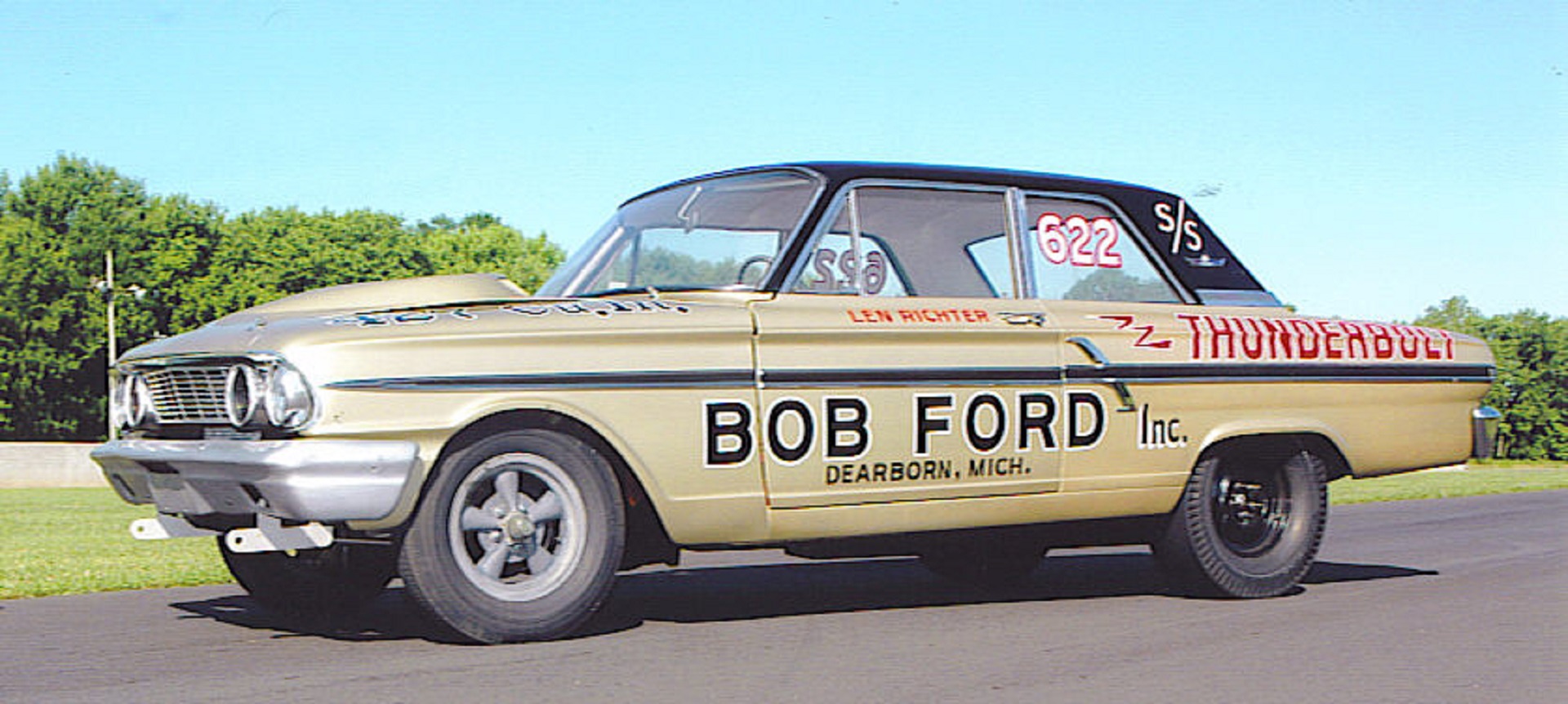

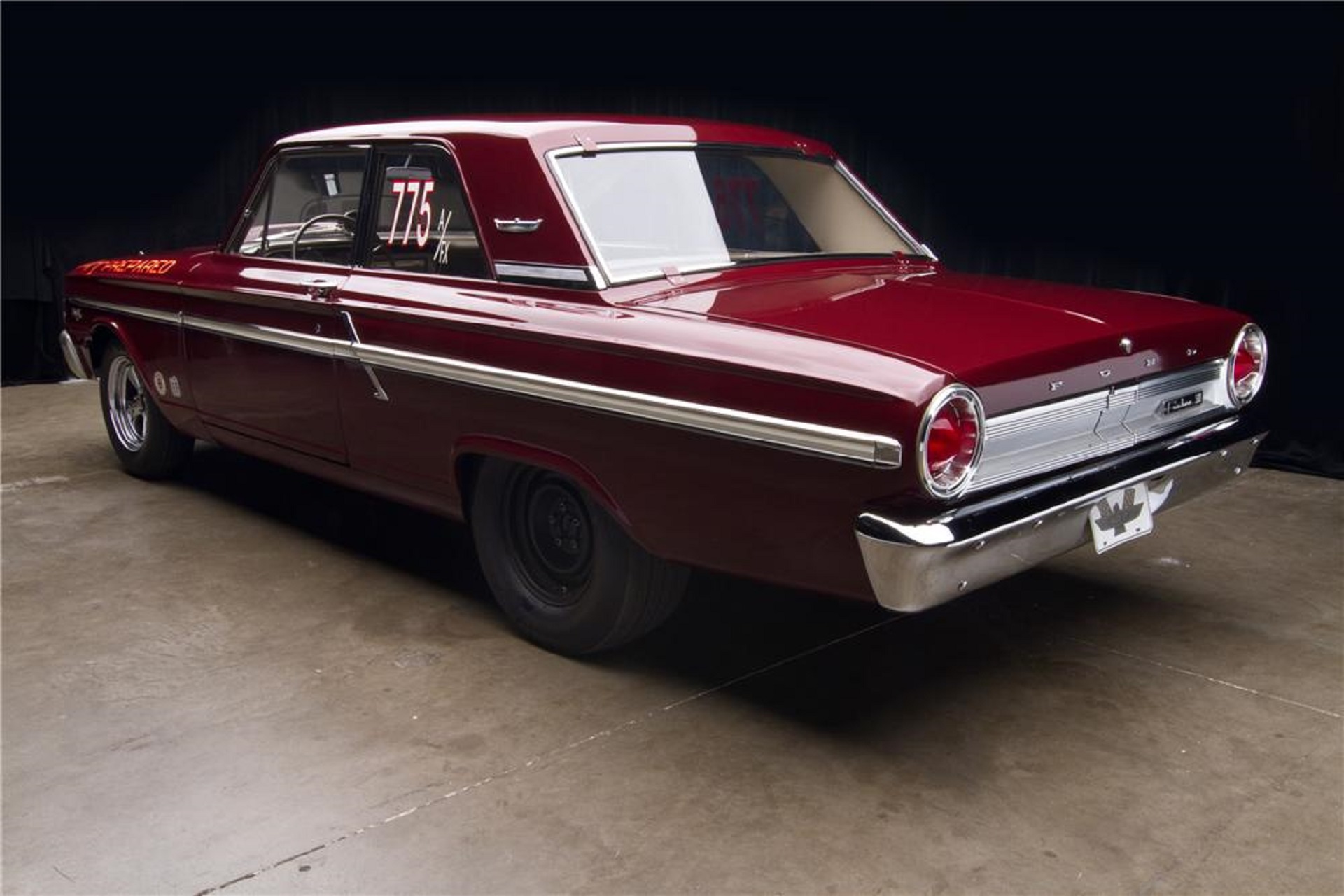

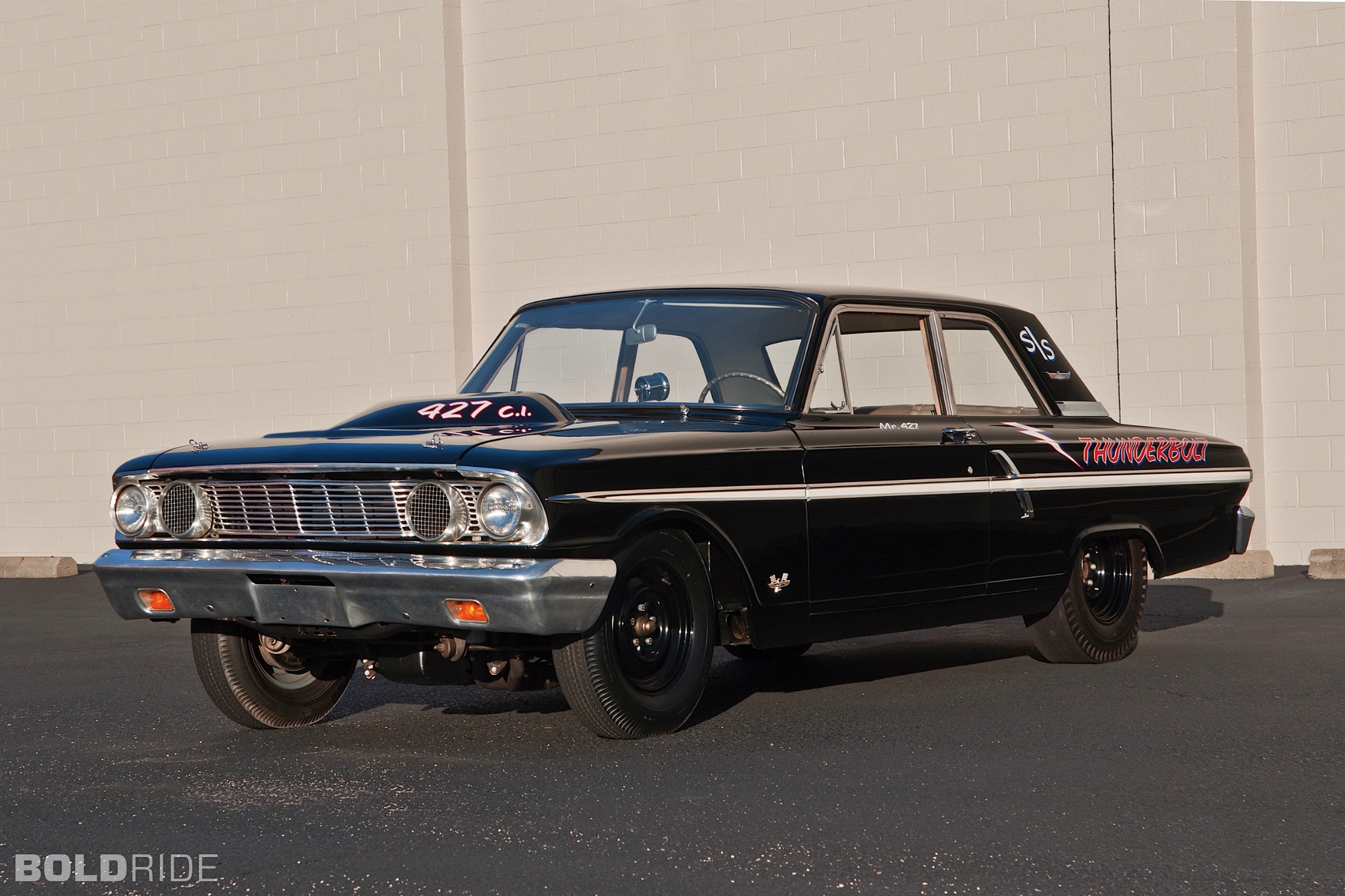

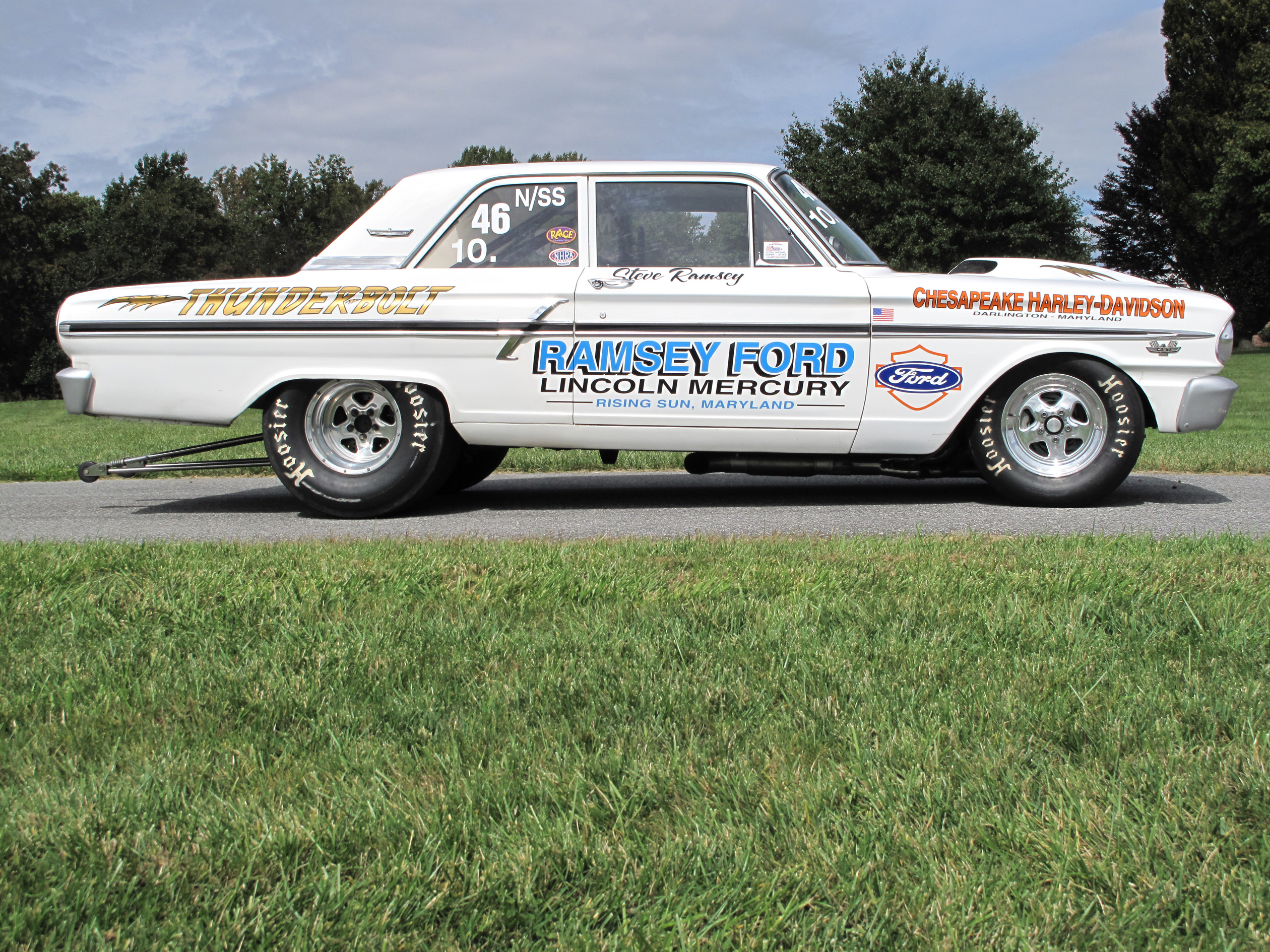

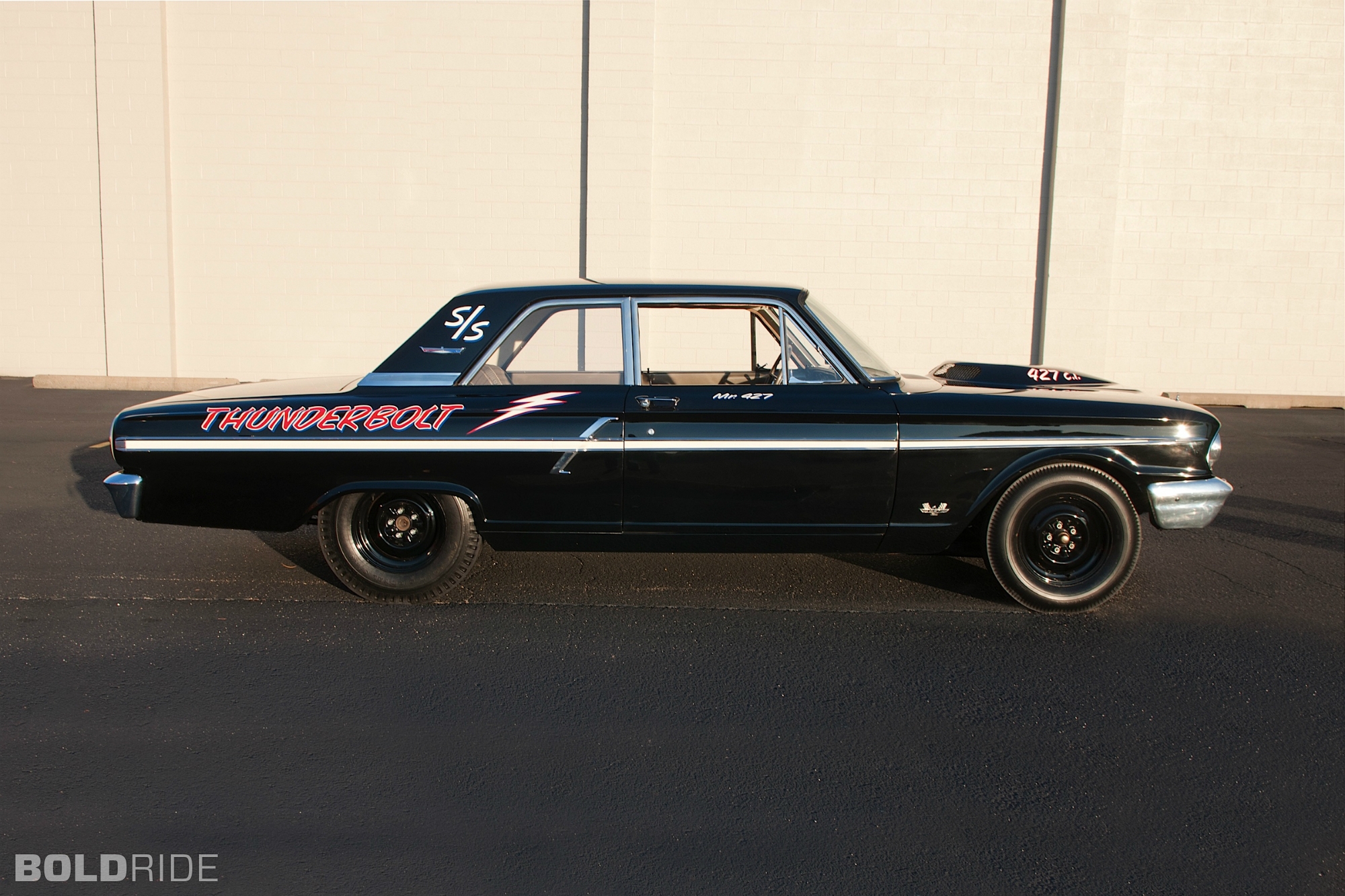

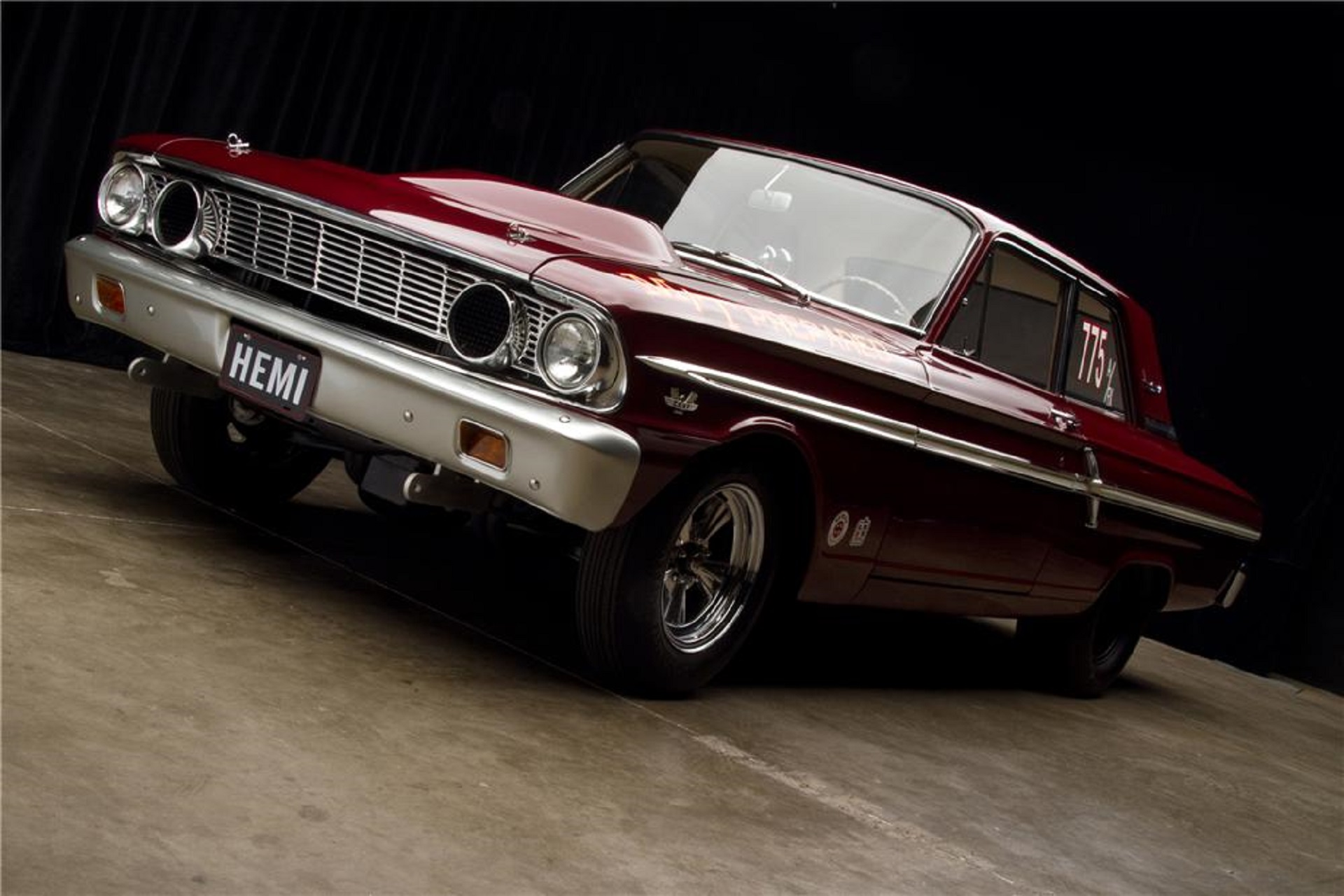

The Ford Fairlane Thunderbolt was a limited production, factory experimental, drag race only automobile built by Ford Motor Company in 1964. A total of 100 units were produced; forty-nine four-speed and fifty-one automatic, enough to secure the 1964 NHRA Super Stock title for Ford.

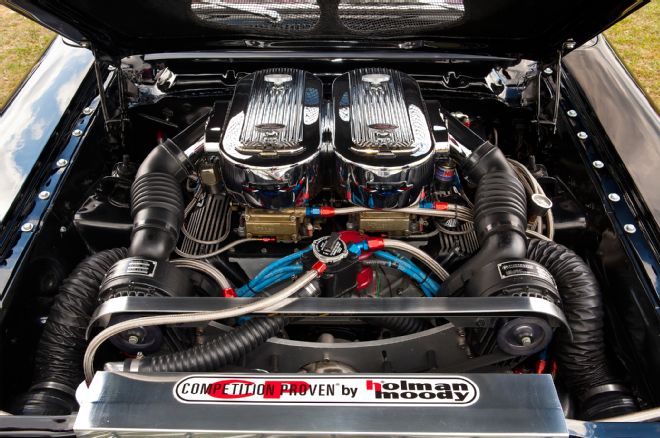

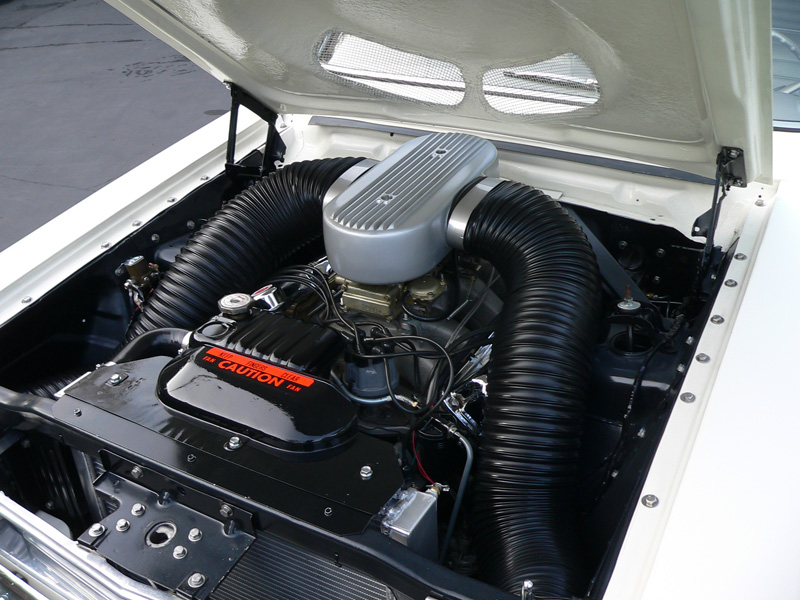

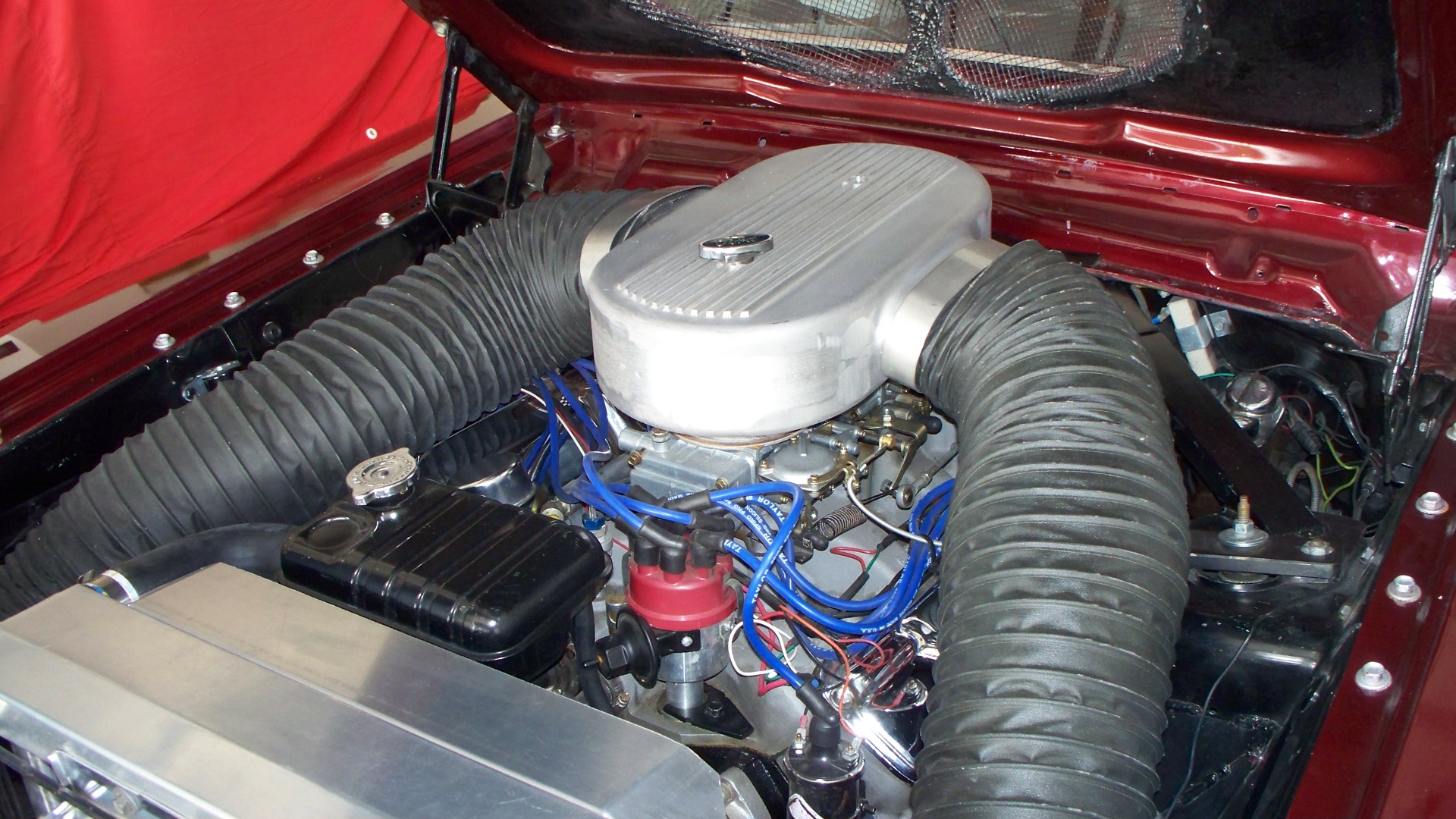

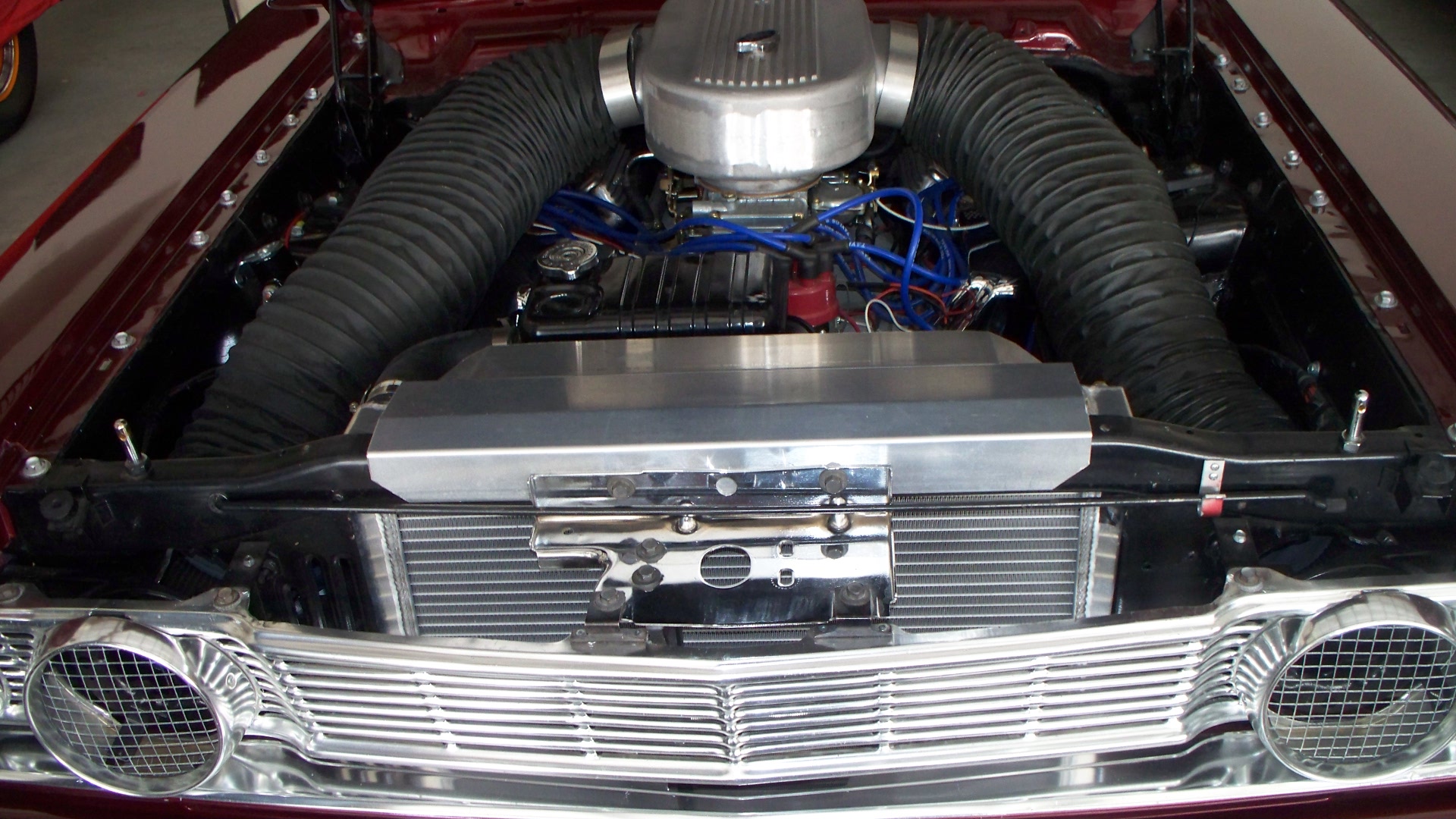

Based on the Fairlane and named for a factory experimental Fairlane of 1963, the Thunderbolt combined the light weight of Ford's intermediate-sized body introduced in 1962 with a "high rise" 427 cu in (7.0 L) V8 engine with dual Holley four-barrel carburetors intended for use in the much larger Galaxie. That engine as used in the Galaxie for NASCAR racing did well, but the Galaxie was simply too heavy an automobile in stock trim to be drag raced successfully; so-called "lightweight" 427-powered Galaxies were built both for stock car racing as well as drag racing during the 1964 model year, although these cars were not modified to the extent of the Thunderbolt. As installed in the Thunderbolt, the engine was (like all US car motors, due to insurance regulations) conservatively rated at 425 hp (317 kW) at 6000 RPM; estimates placed the actual output was close to 600 hp (447 kW). In standard form, the Fairlane is 12 in (300 mm) shorter than a Galaxie, rides on a 3.5 in (89 mm) shorter wheelbase and weighs approximately 700 lb (320 kg) less. Installing the Ford FE V8 in a vehicle intended for an engine no larger than a Ford Windsor/Challenger engine required major reworking and relocation of the car's front suspension components and the modification and strengthening of the suspension mounting areas. Fiberglass doors, hood, front fenders and even the front bumper on the earliest cars along with Plexiglas side and rear windows aided in weight reduction; the hood with its distinctive raised "teardrop" ram air scoop designed to draw hot air from the engine compartment was pinned in position, eliminating the need for a hood hinges and a latch. Later cars have aluminum front bumpers in place of the fiberglass units due to racing regulations. Click on an image below to enlarge Racing equipment includes tubular exhaust headers, an electric fuel pump, altered rear suspension with heavy-duty traction control bars and asymmetrical leaf springs, heavy-duty trunk-mounted battery, locking differential, auxiliary gauges, special drag race wheels and tires supplied both by Goodyear and Mickey Thompson (himself a recipient of one of the first ten cars) and an aluminum scatter shield designed to contain the clutch in case of disintegration under load. The claimed compression ratio was 13.5:1. Other weight-saving measures include the elimination of such street items as the sunvisors, radio, heater, wheel covers, passenger side windshield wiper, arm rests, rear window cranks, mirrors, sound deadening material, carpeting, trunk mat, lug wrench, jack and spare tire. Front seats were either lightweight units from Ford's police package vehicles or rudimentary bucket seats from the Econoline van; the carpeting was replaced with a black rubber mat. The rear seat was a standard Fairlane unit. The high-beam headlights were eliminated as well and in their place were mesh-covered air intakes which ran directly to a special air cleaner atop the 427. Like the street version, the Thunderbolt's outer high-low 5.75 inch (146 mm) headlights of the type normally used with a four-lamp system were selectable with a standard foot-operated switch. Though it was technically a street legal automobile, these modifications and deletions along with a final drive ratio of 4:57.1 for the four-speed cars and 4:44.1 for the automatics make the Thunderbolt impractical for street use. The Thunderbolt was not built on a regular Ford assembly line, but rather in conjunction with Andy Hotton of Dearborn Steel Tubing. It was there that partially built Fairlane bodies in top-of-the-line "500" exterior trim were combined with the 427 and either a heavy-duty Lincoln automatic transmission or a Borg-Warner four-speed manual transmission. The first eleven cars were painted in Ford's "vintage burgundy" while the remaining eighty-nine cars were painted "Wimbledon white." The engine code reflected not the 427 on most cars but rather the so-called "K-code" solid lifter 289 hi- performance engine. Given the special nature of the car, Ford riveted a metal plate to the inside of the glovebox door of the Thunderbolt and other race-only models with a disclaimer relating to fit and finish. The plate read:
|
