Street or Track announces:
Full Floating 9" System with Kelsey Hayes iron calipers!

Vintage racers rejoice! Back in the day, 69-70 Mustang Trans-Am racers would take the small front 65-67 Mustang Kelsey Hayes calipers and put them on the rear. Problem is they were still faced with pad knock back issues and the dangers associated with the stock bearing. We've resolved that issue by combing the classic looks of the iron caliper with our full floating rear end system which eliminates pad knock back!

Pair this with our Front Trans-Am Brake System for a complete vintage setup.

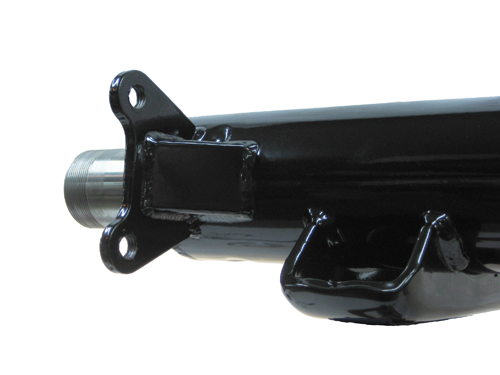

Fully gusseted caliper mounting bracket is fixtured and Tig welded to 3" O.D. axle tubes.

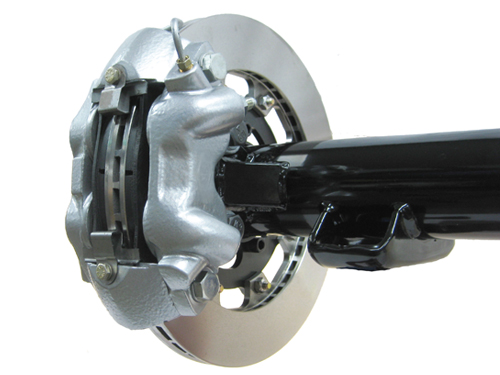

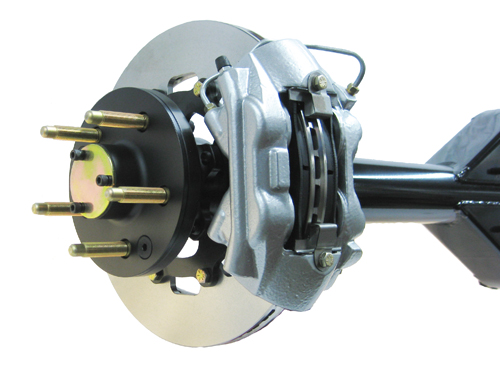

USA cast and finished machined rotors are mounted to our 4140 heat treated hubs. Bullet nosed ARP wheel studs are standard.

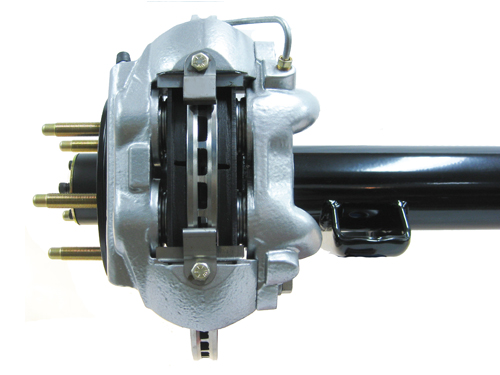

Calipers are brand new castings featuring stainless steel pistons and cross over tubes. Porterfield R4-S pads supplied as standard.


Leaf spring saddles are installed at the stock 43" on center location enabling a very simple install.


Please see our website for more info - Street or Track Full Floating 9" Rear End System
